j5create USB-C Triple Display Docking Station - JCD543

j5create USB-C Triple Display Docking Station - JCD543

$227.79 CAD
$227.79 CAD
Sale Sold out
Shipping calculated at checkout.
Title

j5create USB-C Triple Display Docking Station

  • Manufacturer Part No. : JCD543
  • UPC : 847626003363
  • for Smartphone, Tablet, Microphone, Monitor, Notebook - Memory Card Reader - SD, microSD - USB Type C - 3 Displays Supported - 4K UHD, Full HD - 3840 x 2160, 1920 x 1080 - 5 x USB Ports - 3 x USB 3.0 - 3 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - VGA - DisplayPort - Black - Wired - Gigabit Ethernet - Windows 10, Mac OS X 10.14 Mojave, macOS Big Sur - 100W
    • General Information
  • Manufacturer: j5create
  • Manufacturer Part Number: JCD543
  • Manufacturer Website Address: https://en.j5create.com
  • Brand Name: j5create
  • Product Model: JCD543
  • Product Name: USB-C Triple Display Docking Station
  • Marketing Information:

    This triple display docking station turns your Mac® or Windows® laptop into a full workstation with a DisplayPort™ output, two HDMI™ outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one. You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB™ 3.0 ports, and a USB-C™ port, this docking station is perfect for your MacBook®, Dell® XPS™, or other USB-C™ laptop requiring additional ports.

    This USB™ 3.0 docking station is also equipped with a RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C™ port's location.

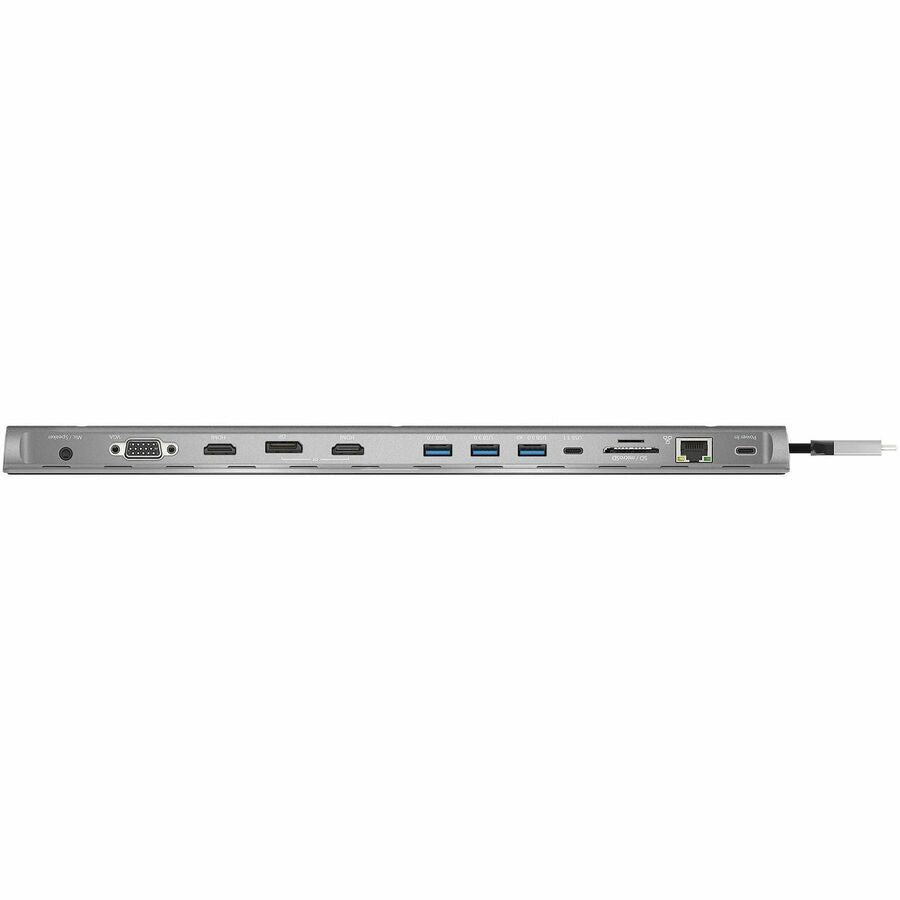

    All 13 ports are combined into one slim docking station, so you'll have all the connections you need to stay productive!

    Simultaneous DisplayPort™, HDMI™ and VGA Output

    Supports Mirror and Extended modes on both Mac® & Windows®. The easiest way to add a second or third display.

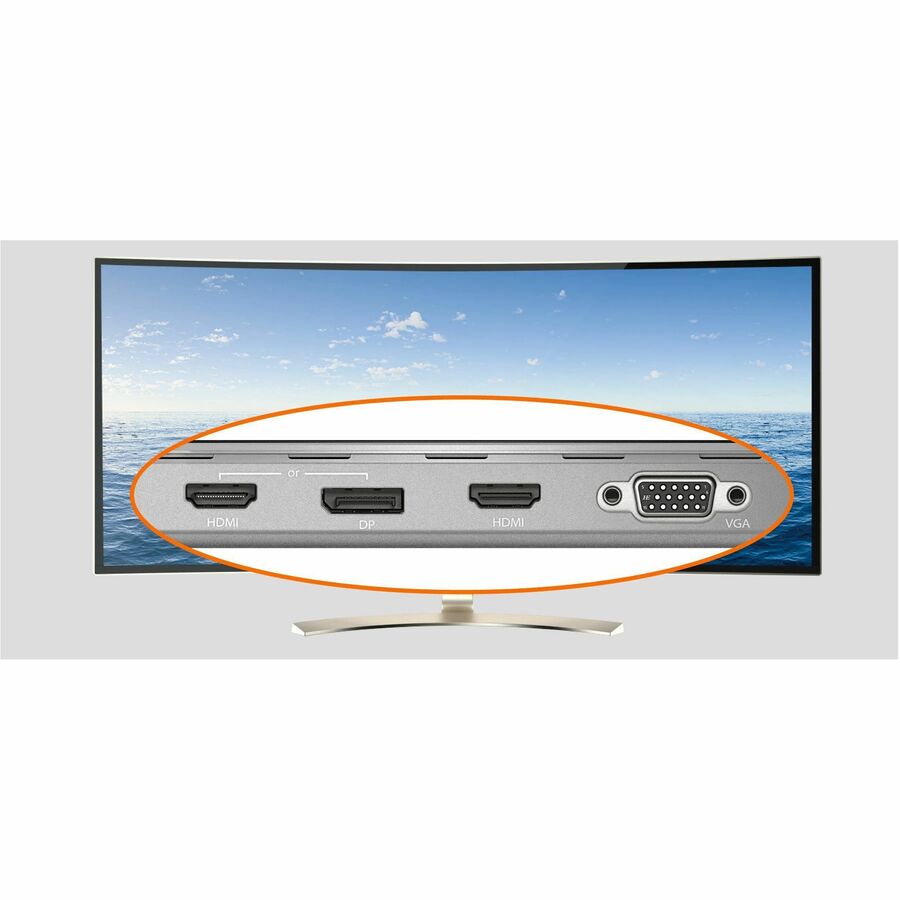

    HDMI™/DisplayPort™/VGA Output Port

    Supports 3 Video Interfaces

    DisplayPort™ Alt mode for HDMI™ or DisplayPort™ resolution of 4K @ 30 Hz

    HDMI™ resolution of 4K @ 30 Hz and VGA resolution of 1920 x 1080 via dual output

    Maximum Resolutions Supported in Extended Mode

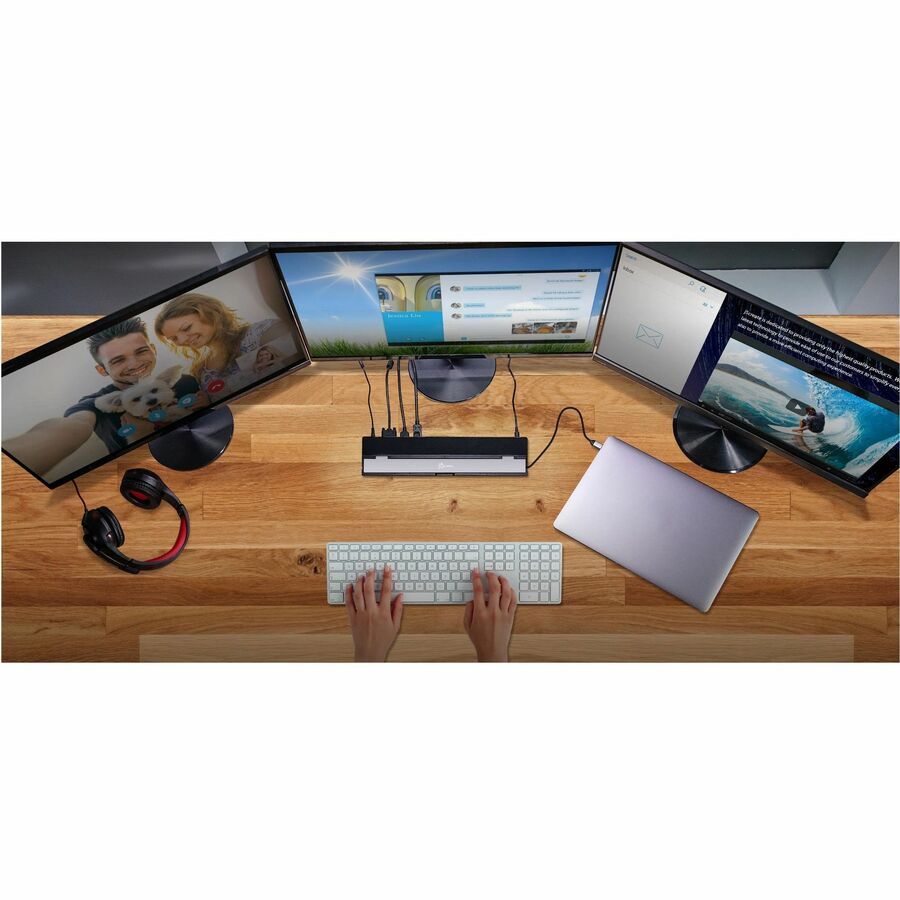

    3 types of video outputs for you to connect up to 3 external monitors and together with your laptop display, you'll have a maximum of 4 displays.

    Maximum Resolutions Supported in Mirror Mode

    1080p resolution is supported in a triple display configuration when VGA output is connected from macOS® devices while 4K resolution is supported in a dual display configuration when VGA output is not connected from macOS® devices

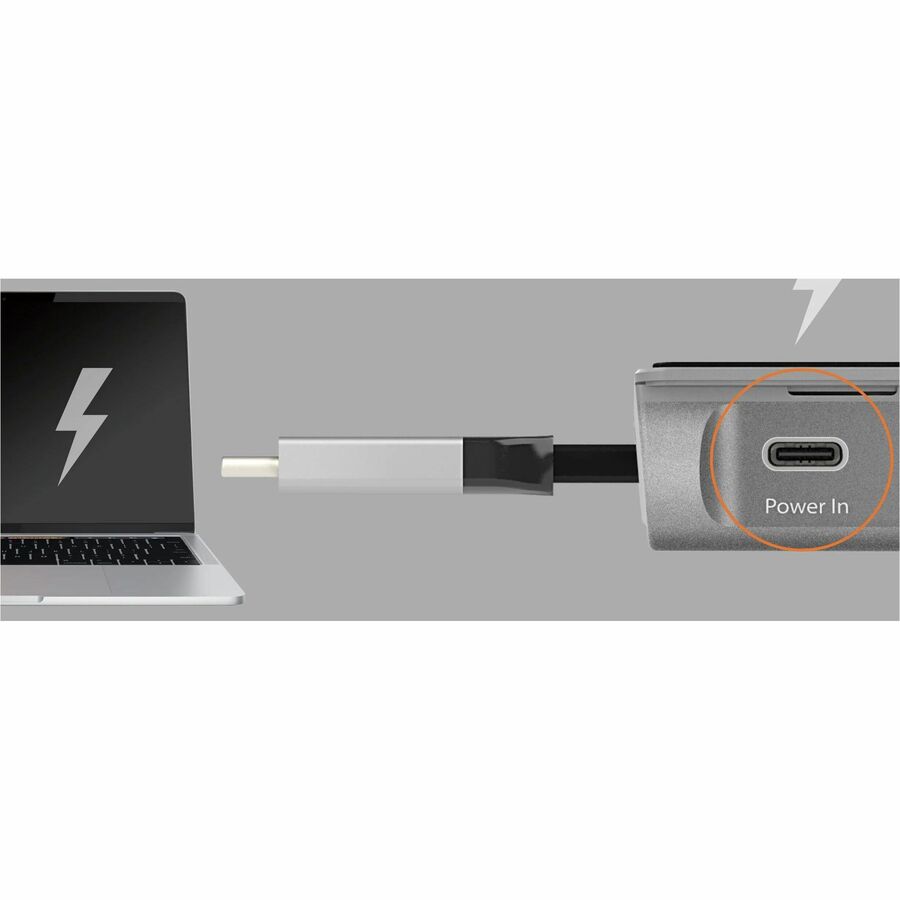

    Charge your notebook or desktop through the JCD543

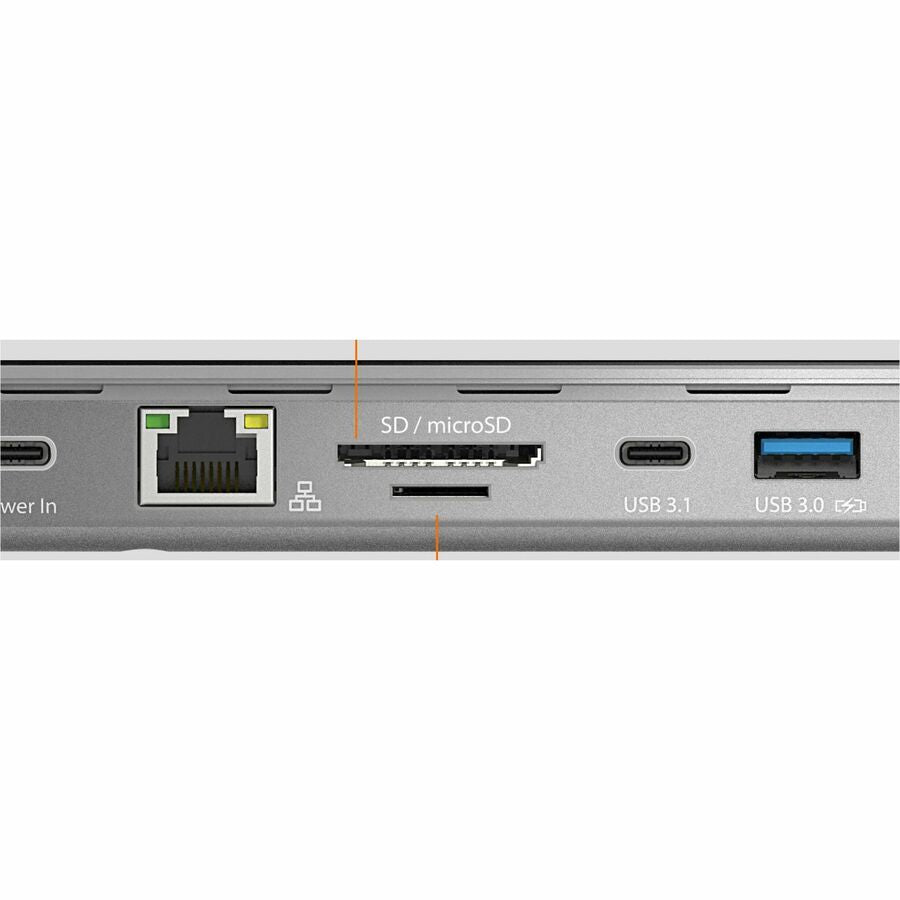

    SD™/microSD™ Card Reader

    Easily manage and backup your data from your camera, video recorder and more

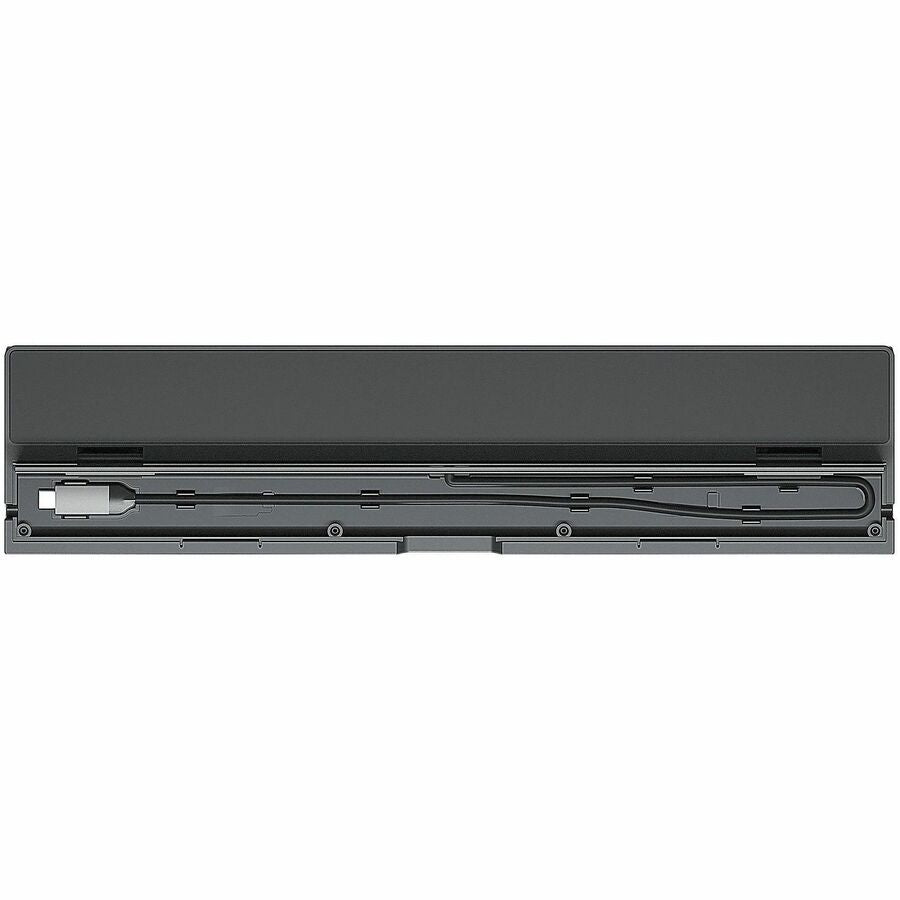

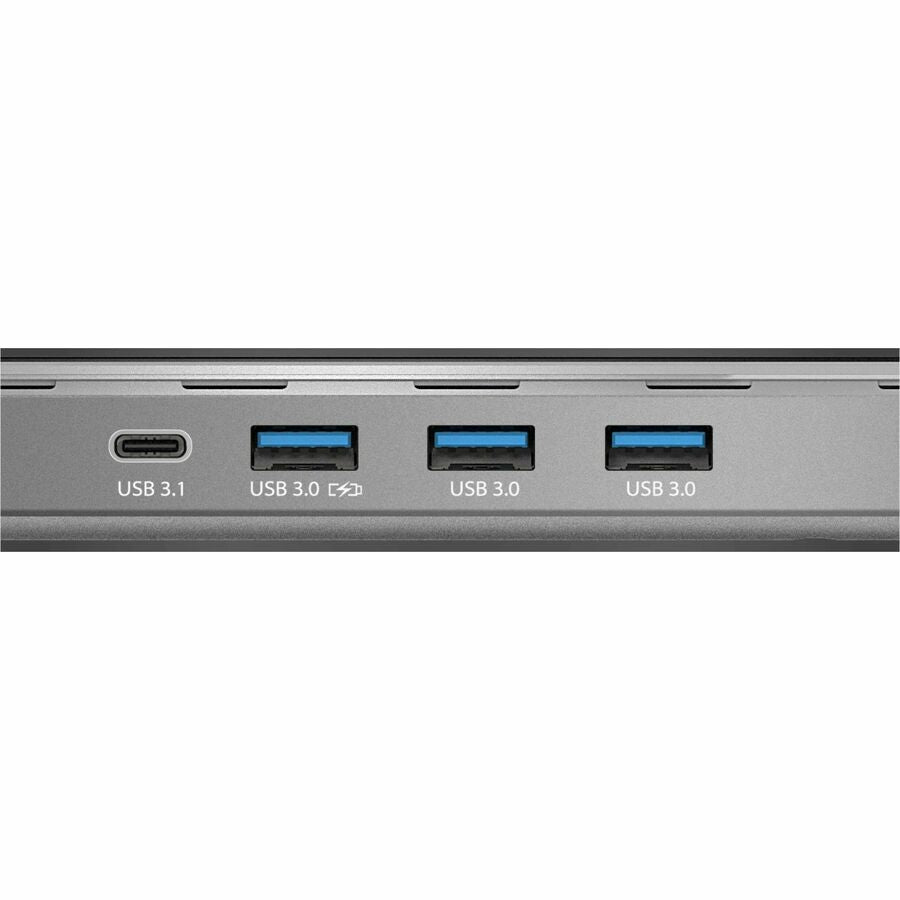

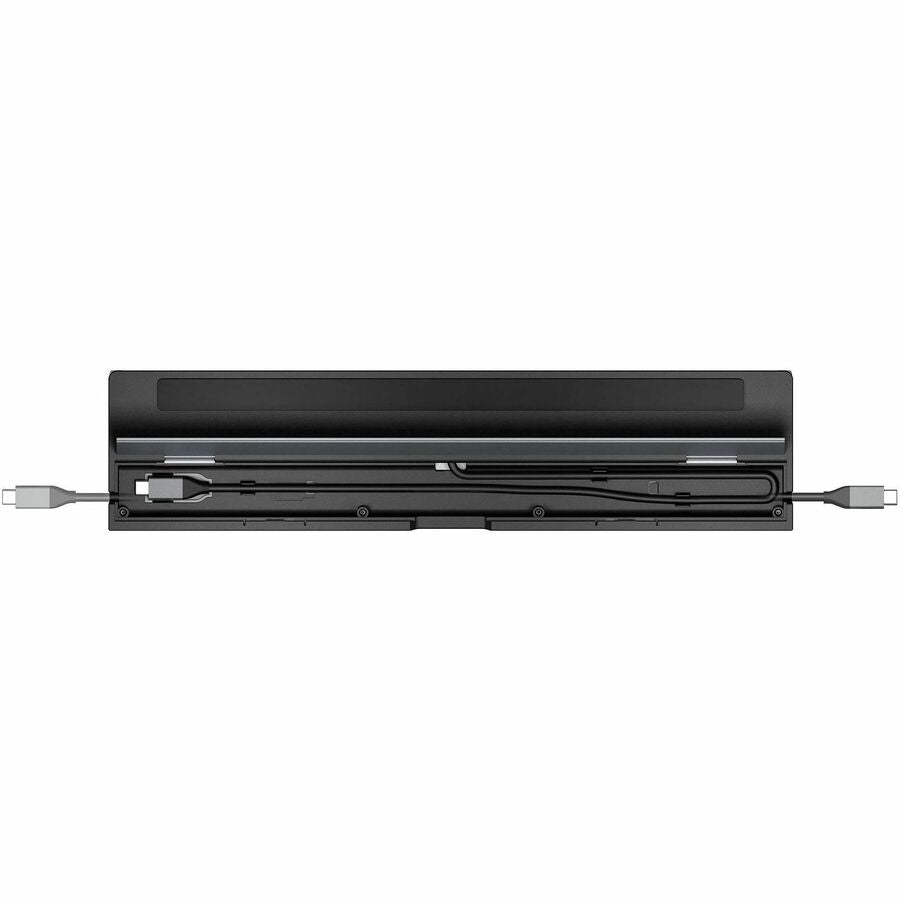

    SuperSpeed USB™ 3.0 Ports | 13 ports in one sleek design for all your needs | Double Sided Cable Storage Compartment

    Place the cable anyway you like

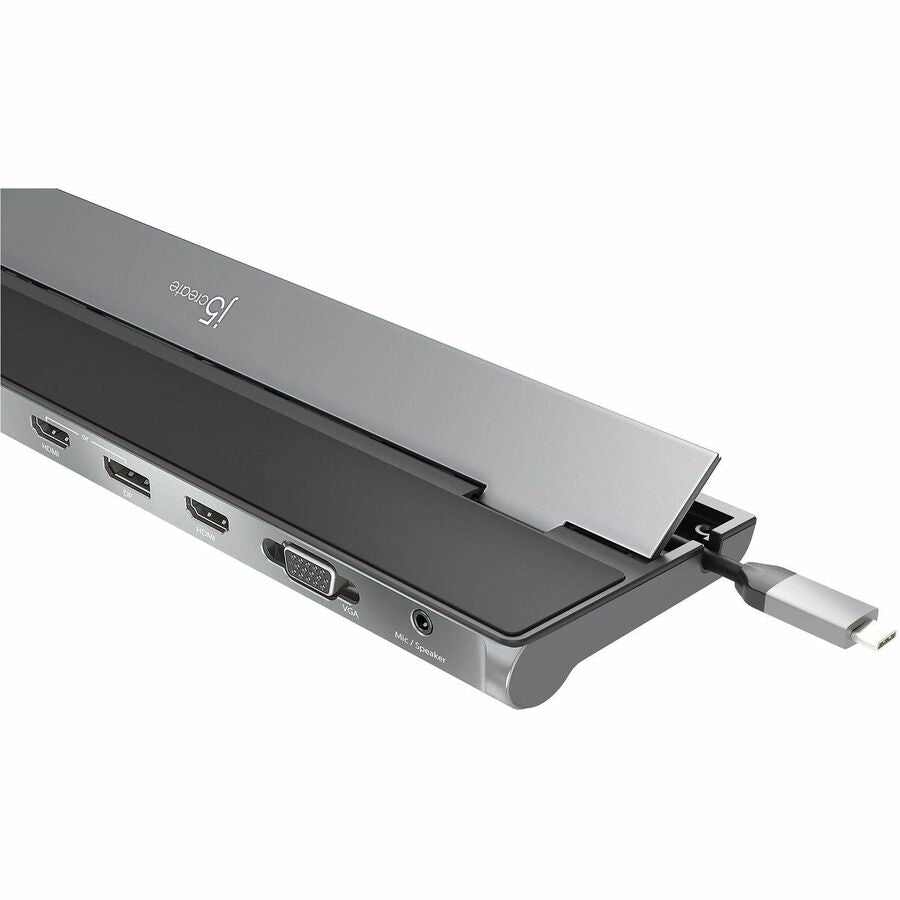

    Cutting-Edge Design

    The advanced heat-eliminating design makes the JCD543 the perfect solution for expanding any laptop into a full-sized work-station without the worry of overheating.

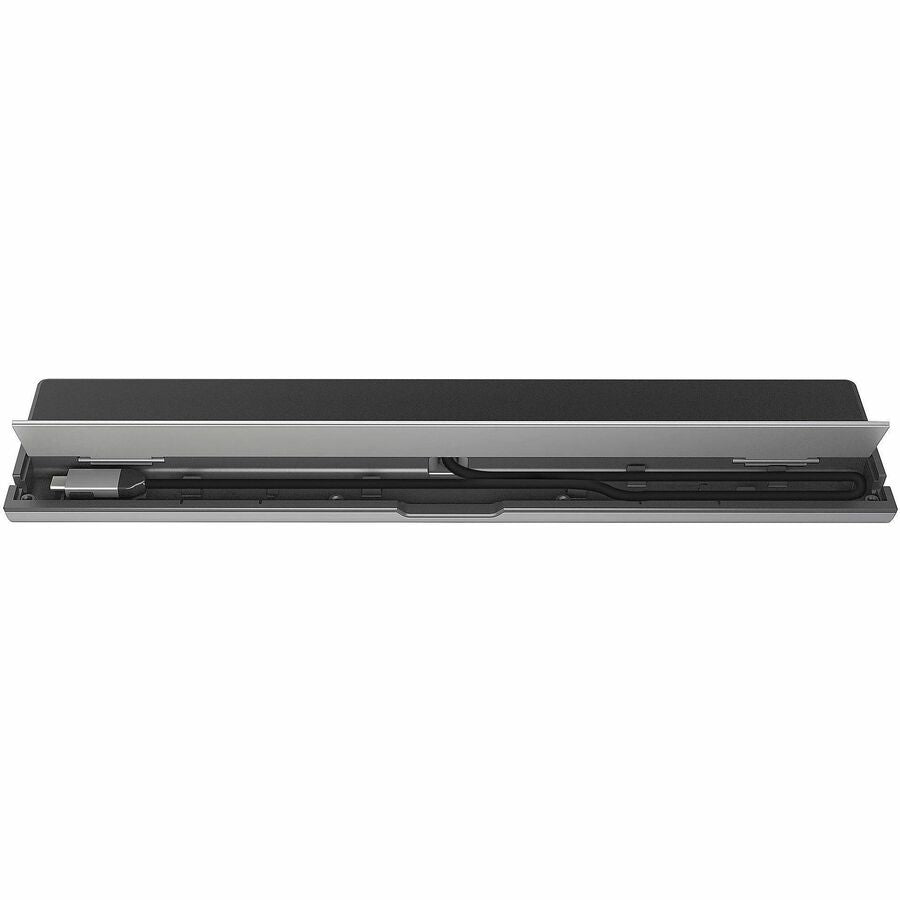

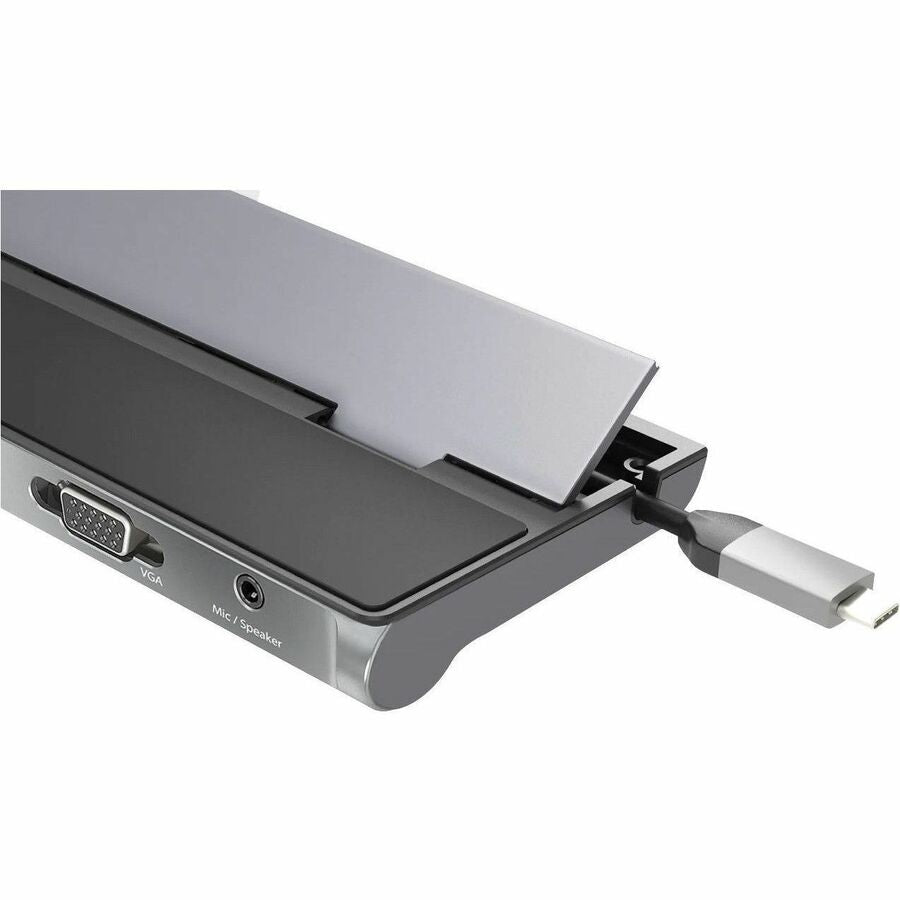

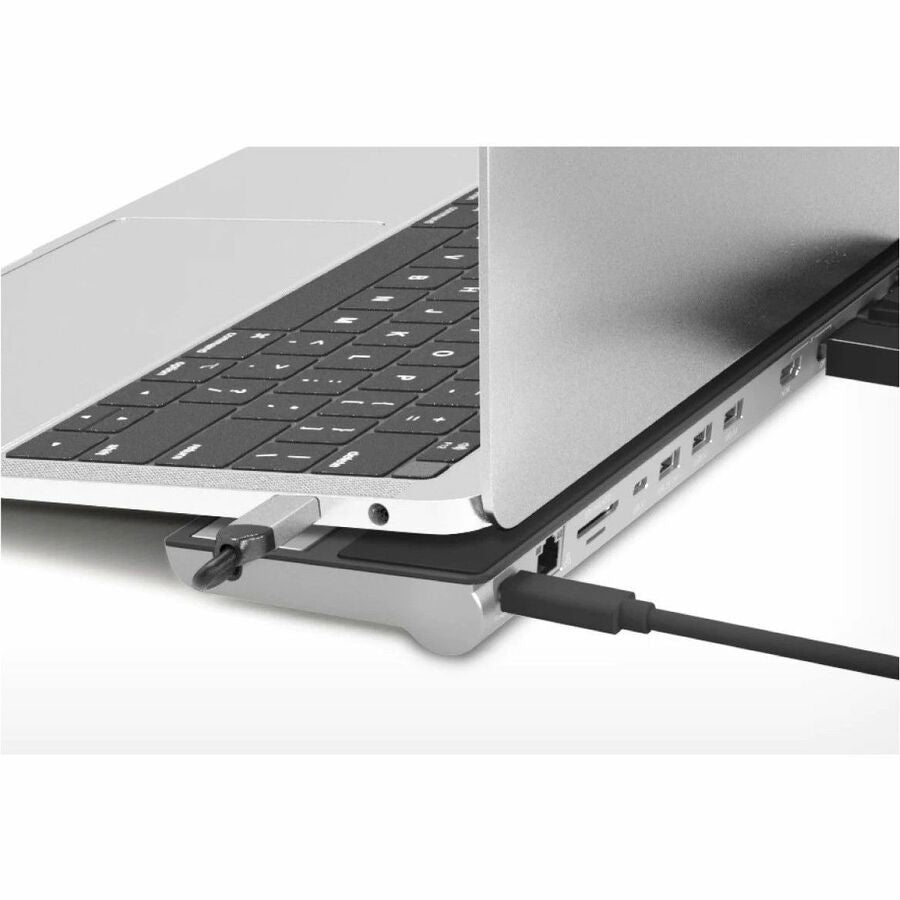

    Cable Storage with Dual Openings | Universal Compatibility

    Compatible with both Mac® & Windows®

  • Packaged Quantity: 1 Each
  • Product Type: Docking Station
    • Technical Information
  • Connectivity Technology: Wired
  • Device Supported:
    • Smartphone
    • Tablet
    • Microphone
    • Monitor
    • Notebook
  • Cable Length: 1.5 ft (0.45 m)
  • Memory Card Reader: Yes
  • Memory Card Supported:
    • SD
    • microSD
  • Features: Power Delivery Pass-through
  • Number of Displays Supported: 3
  • Screen Mode Supported:
    • 4K UHD
    • Full HD
  • Supported Resolutions:
    • 3840 x 2160
    • 1920 x 1080
  • Maximum Data Transfer Rate: 640 MB/s
    • Network & Communication
  • Ethernet Technology: Gigabit Ethernet
    • Interfaces/Ports
  • Host Interface: USB Type C
  • Total Number of USB Ports: 5
  • Number of USB 3.0 Ports: 3
  • USB Type-A: Yes
  • Number of USB Type-A Ports: 3
  • USB Type-C: Yes
  • USB Type-C Detail: 1 x USB-C™ 3.1 Gen 1, 1 x USB-C™ Power Delivery 3.0
  • Number of USB Type-C Ports: 2
  • Number of USB 3.1 Gen 1 Type-C Ports: 1
  • Network (RJ-45): Yes
  • Number of RJ-45 Ports: 1
  • Number of Network (RJ-45) Ports: 1
  • VGA: Yes
  • Number of VGA Outputs: 1
  • DisplayPort: Yes
  • Number of DisplayPort Outputs: 1
  • Headphone/Microphone Combo Port: Yes
  • HDMI: Yes
  • HDMI Version: 2.1
  • Number of HDMI Outputs: 2
  • USB Power Delivery: 100W
    • Software
  • Operating System Supported:
    • Windows 10
    • Mac OS X 10.14 Mojave
    • macOS Big Sur
    • Power Description
  • Power Source Type: USB
    • Physical Characteristics
  • Color Family: Black
  • Product Color: Black
  • Height: 0.92" (23.37 mm)
  • Width: 3.25" (82.50 mm)
  • Depth: 13.78" (350 mm)
  • Weight (Approximate): 10.58 oz (300 g)
    • Miscellaneous
  • Package Contents:
    • USB-C Triple Display Docking Station
    • 1 x Quick Installation Guide
  • Compatibility:

    Compatible Devices:

    • Apple MacBook
    • Apple iPhone
    • Apple iPad
    • Dell XPS Laptops
    • USB-C Laptops
  • Brand Compatibility:
    • Apple
    • Dell
  • Country of Origin: United States
    • Warranty
  • Limited Warranty: 2 Year

    • Materials
