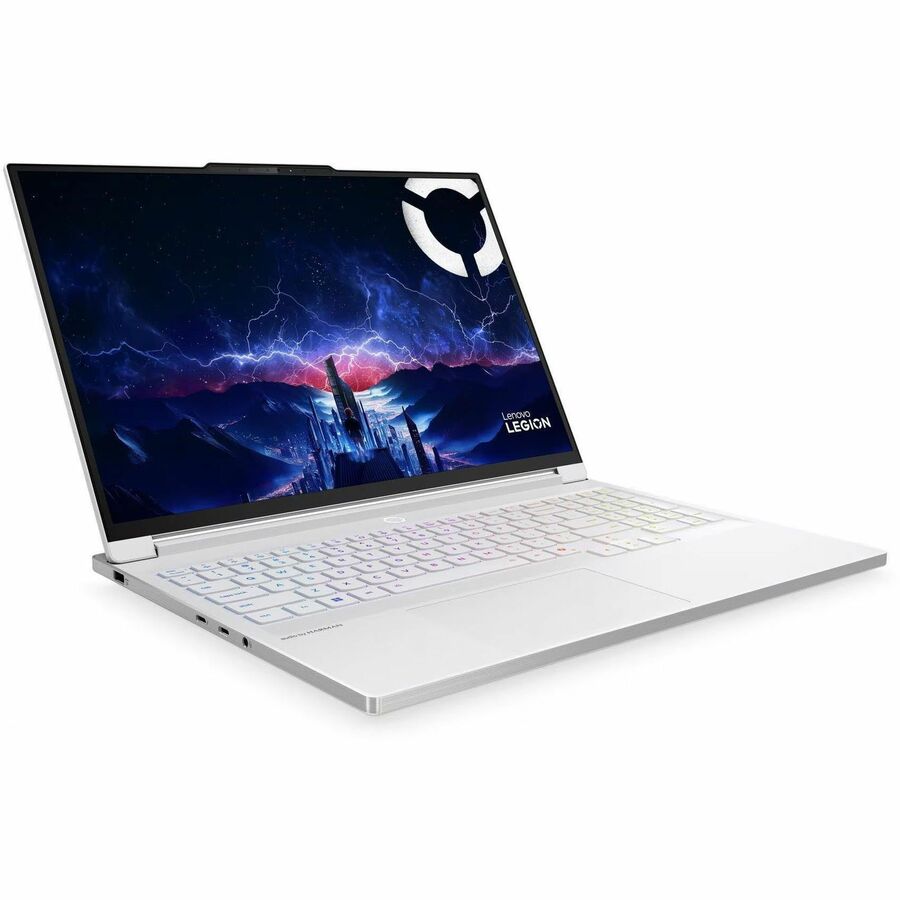

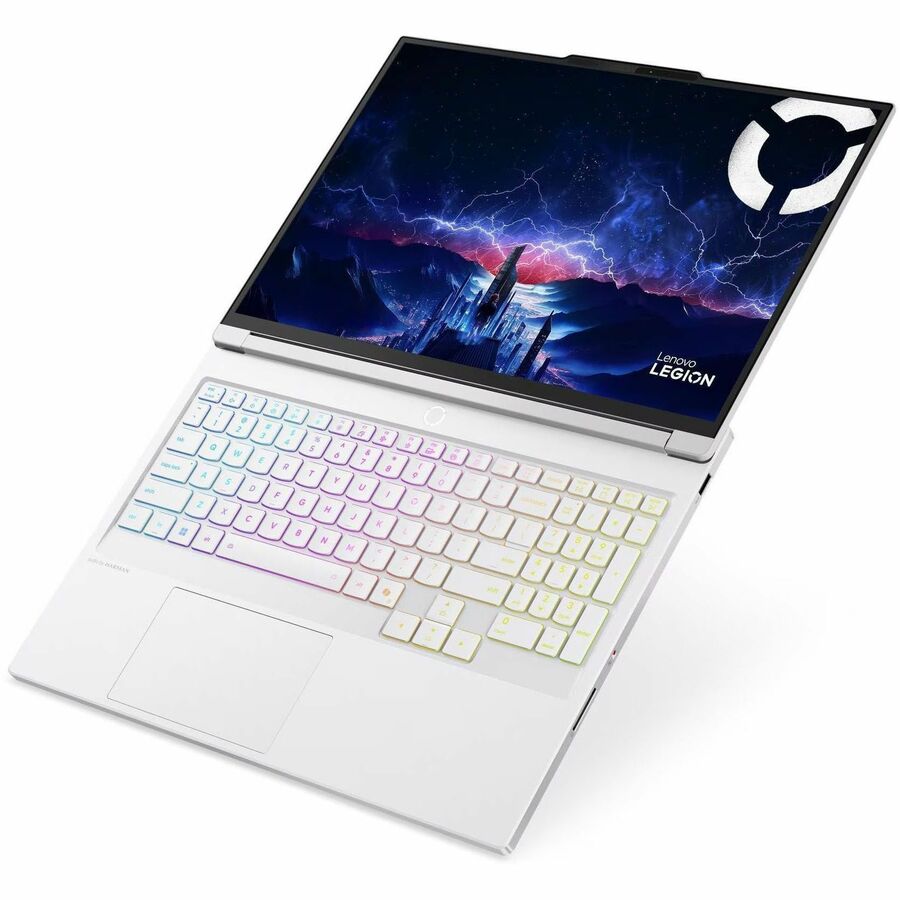

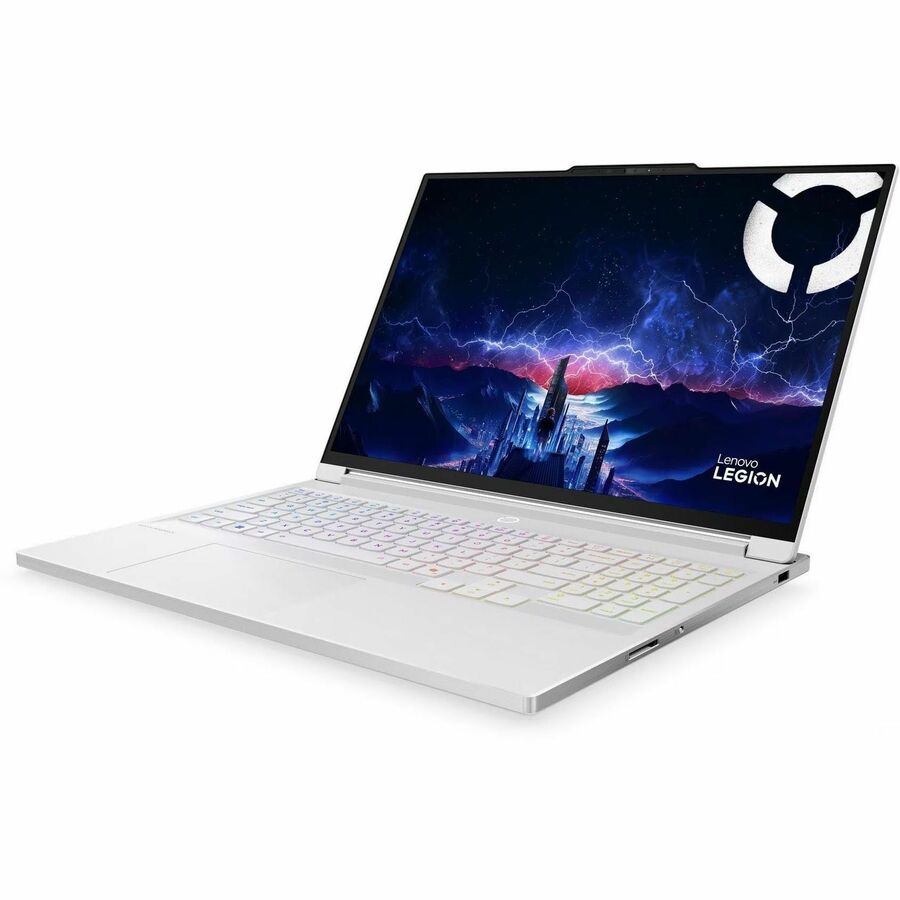

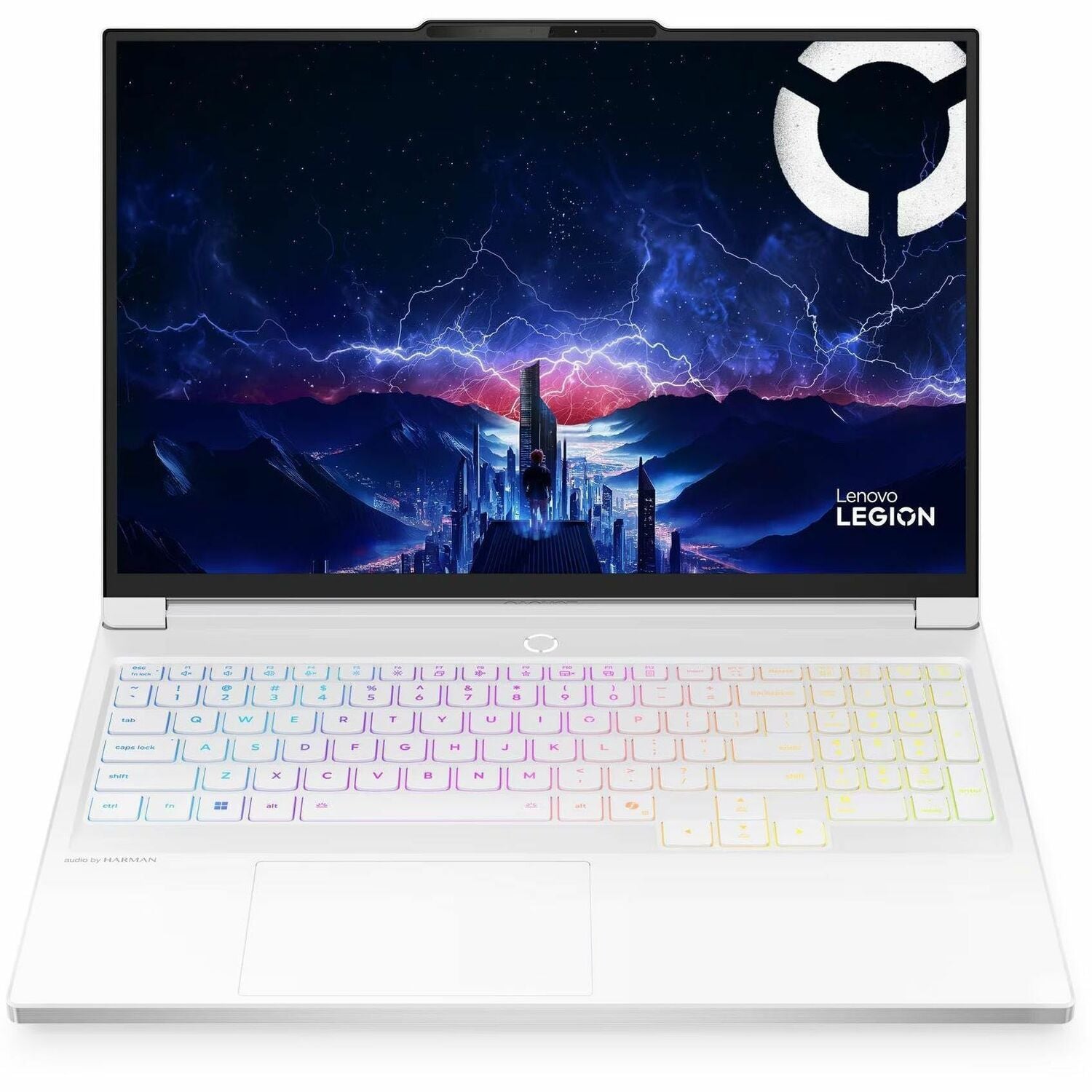

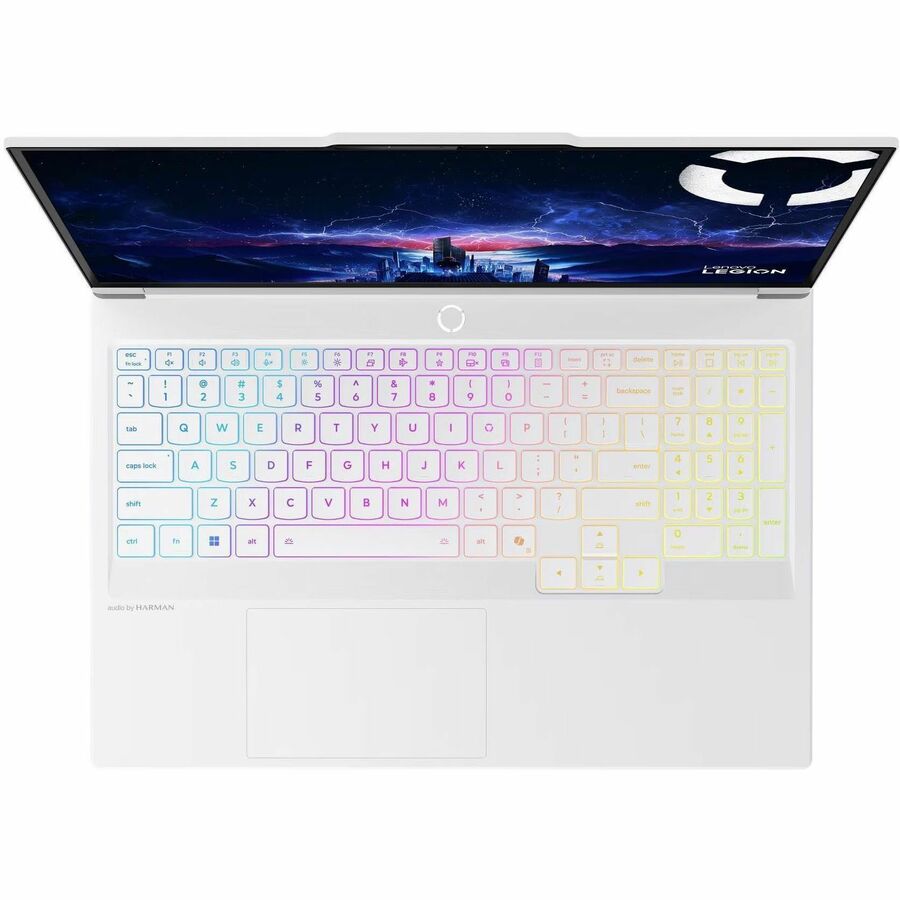

Legion 7 16IAX10 4.60 GHz W11H64 32.0GB 1 TB PCIe 16 - 83KY000PCC

Legion 7 16IAX10 4.60 GHz W11H64 32.0GB 1 TB PCIe 16

Manufacturer Part No. : 83KY000PCC

UPC : 198157095380

Lenovo Legion 7 16IAX10, Intel® Core™ Ultra 9 275HX (E-cores up to 4.60GHz, 36MB), 16" WQXGA Non-Touch, W11H64 ENG, 32.0GB, 1x1TB SSD M.2 2242 PCIe Gen4 TLC, Glacier White, 1xNVIDIA® GeForce RTX™ 5060 8GB, BT 5.4,Wi-Fi 7 2x2 BE, 5MP RGB+IR, 4 Cell Li-ion 84Wh, 245W, 1CourierCarryin, Per-Key RGB Backlit, White-English (US)

General Information

Manufacturer: Lenovo Group Limited

Manufacturer Part Number: 83KY000PCC

Manufacturer Website Address: http://www.lenovo.com

Brand Name: Lenovo

Product Line: Legion

Product Series: 7 16IAX10

Product Model: 83KY000PCC

Product Name: Legion 7 16IAX10 83KY000PCC

Marketing Information:

Legion Laptops

Powerful processors, discrete graphics, overlock options, intense lighting effects & more.

Product Type: Gaming Notebook

Technical Information

Release Month: May

Release Year: 2025

AI-powered: Yes

Processor

Processor Manufacturer: Intel

Processor Type: Core Ultra 9

Processor Generation: 2nd Gen

Processor Model: 275HX

Processor Core: Tetracosa-core (24 Core)

Processor Threads: 24

Maximum Turbo Speed: 5.40 GHz

NPU Manufacturer: Intel

NPU Name: AI Boost

NPU Performance: 13 TOPS

L3 Cache: 36 MB

Chipset

Chipset Manufacturer: Intel

Chipset Model: HM870

Memory

Standard Memory: 32 GB

Maximum Supported System Memory: 32 GB

System Memory Technology: DDR5 SDRAM

System Memory Speed: 5600 MHz

System Memory Form Factor: SODIMM

Installed Slot Memory: 32 GB

Installed Slot Memory Configuration: 2 x 16GB

Total Number of Memory Slots: 2

Number of Occupied Memory Slots: 2

Number of Free Memory Slots: 0

Storage

Drive Type: SSD

Total Solid State Drive Capacity: 1 TB

Solid State Drive Interface: PCI Express 4.0

SSD Form Factor: M.2

Display & Graphics

Screen Size: 16"

Display Screen Type: OLED

Standard Refresh Rate: 240 Hz

Screen Mode: WQXGA

Screen Resolution: 2560 x 1600

Brightness: 500 cd/m²

Color Gamut: 100% DCI-P3

Touchscreen: No

Graphics Controller Manufacturer: NVIDIA

Graphics Controller Model: GeForce RTX 5060

Graphics Memory Capacity: 8 GB

Graphics Memory Technology: GDDR7

Graphics Memory Accessibility: Dedicated

AI GPU: Yes

AI TOPS (GPU): 572

Network & Communication

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11be

Wi-Fi Generation: Wi-Fi 7

Wimax: No

Bluetooth: Yes

WWAN Supported: No

Built-in Devices

Front Camera/Webcam: Yes

Front Camera/Webcam Resolution: 5 Megapixel

Infrared Camera: Yes

Finger Print Reader: No

Speakers: Yes

Speaker Power Details: 2 x 2W

Sound Mode: Stereo

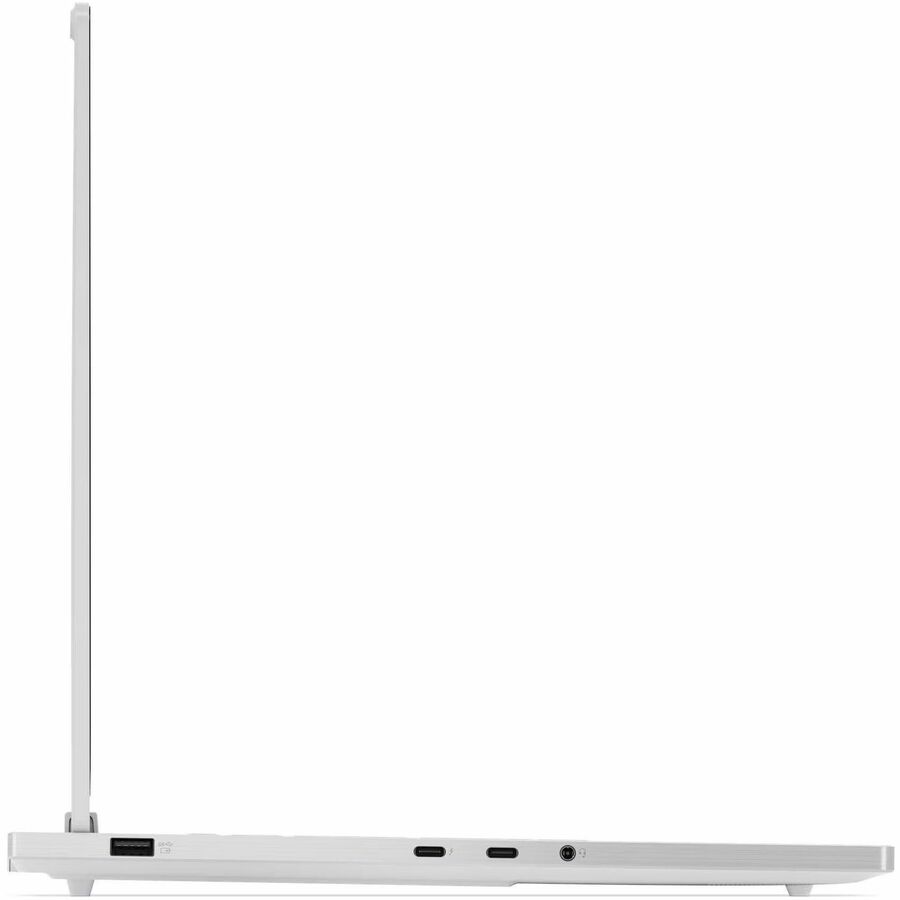

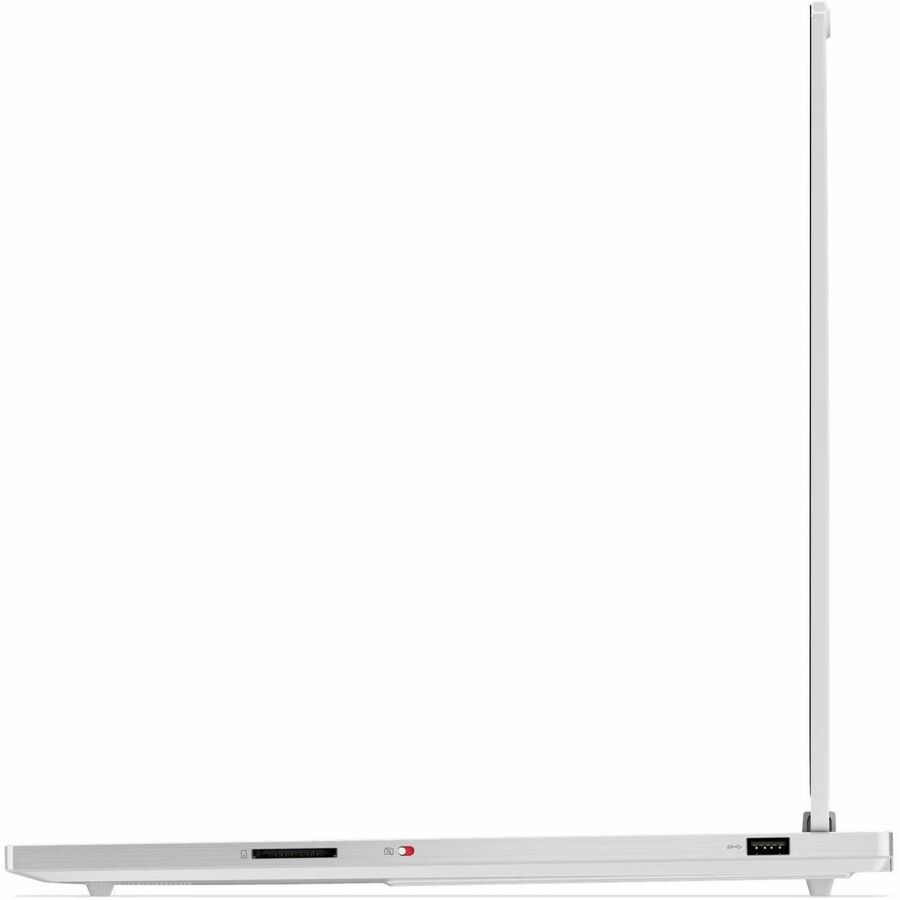

Interfaces/Ports

HDMI: Yes

Total Number of USB Ports: 3

Number of USB 3.2 Gen 1 Type-A Ports: 2

Number of USB 3.2 Gen 2 Type-C Ports: 1

Network (RJ-45): No

Number of Thunderbolt 4 Ports: 1

Docking Capability: USB-C Thunderbolt 4

Operating System

Operating System Platform: Windows

Operating System: Windows 11 Home

Operating System Language: English

Operating System Architecture: 64-bit

Input Devices

Keyboard Backlight: Yes

Keyboard Localization: English (US)

Battery Information

Number of Cells: 4-cell

Battery Chemistry: Lithium Ion (Li-Ion)

Battery Energy: 84 Wh

Power Description

Input Voltage:

• 120 V AC
• 230 V AC

Maximum Power Supply Wattage: 245 W

AC Adapter Frequency:

• 50 Hz
• 60 Hz

Included Charger Power: 245 W

USB Power Delivery Support: Yes

Physical Characteristics

Color Family: White

Product Color: Glacier White

Cover Material: Aluminum

Height: 0.70" (17.90 mm)

Width: 14.24" (361.70 mm)

Depth: 10.37" (263.40 mm)

Miscellaneous

Package Contents:

• Legion 7 16IAX10 83KY000PCC
• Standard Battery
• AC Adapter

Charger Included: Yes

Features: Low Blue Light

Energy Efficiency Compliance: Energy-related Products Directive Lot 3 (ErP Lot 3)

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 1 Year

Additional Warranty Information:

1CourierCarryin
