• TP-Link TL-SM311LS MiniGBIC Module
1 5

TP-LINK Technologies Co., Ltd

TP-Link TL-SM311LS MiniGBIC Module - 4888139

TP-Link TL-SM311LS MiniGBIC Module - 4888139

$41.99 CAD
$41.99 CAD
Sale Sold out
Shipping calculated at checkout.

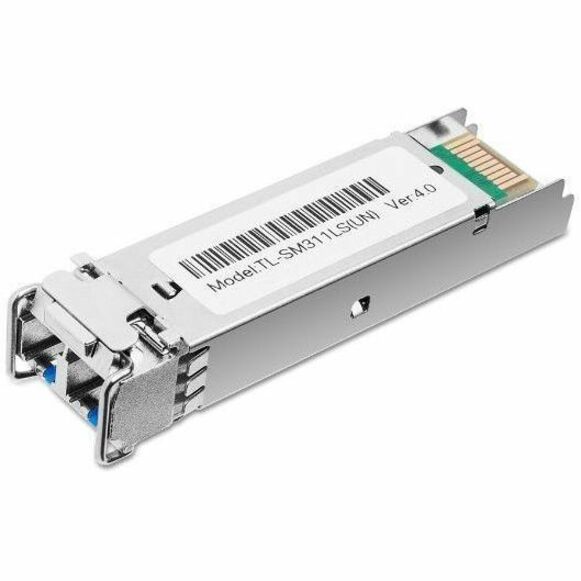

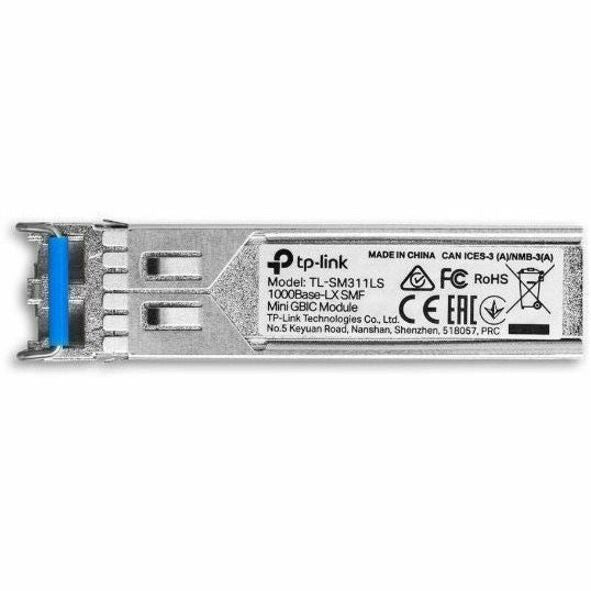

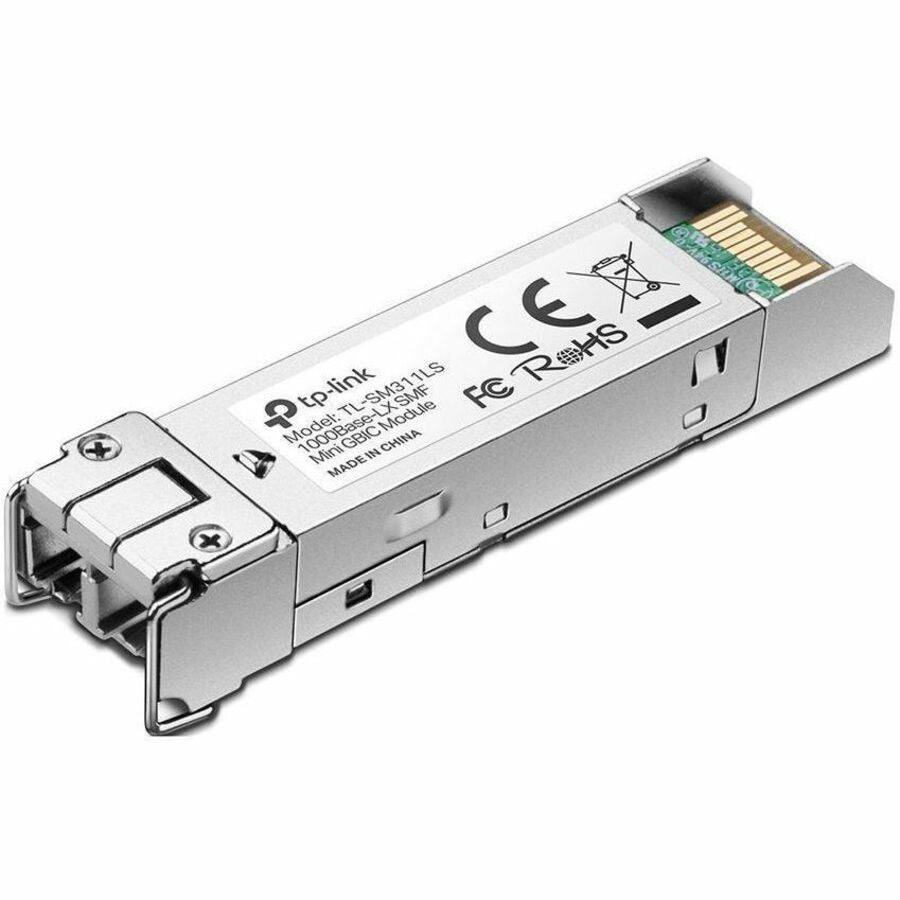

TP-Link TL-SM311LS MiniGBIC Module

  • Manufacturer Part No. : 4888139
  • UPC : 845973030216
  • For Data Networking, Optical Network - 1 x LC/UPC Duplex 1000Base-LX Network - Optical Fiber - 9/125 µmSingle-mode - 1.25 Gigabit Ethernet - 1000Base-LX - 1.25 Gbit/s - 20 km (12.43 Mile) Maximum Distance - Hot-swappable - 1 Each
    • General Information
  • Manufacturer: TP-LINK Technologies Co., Ltd
  • Manufacturer Part Number: 4888139
  • Manufacturer Website Address: http://www.tp-link.com
  • Brand Name: TP-Link
  • Product Model: TL-SM311LS
  • Product Name: TL-SM311LS MiniGBIC Module
  • Marketing Information:

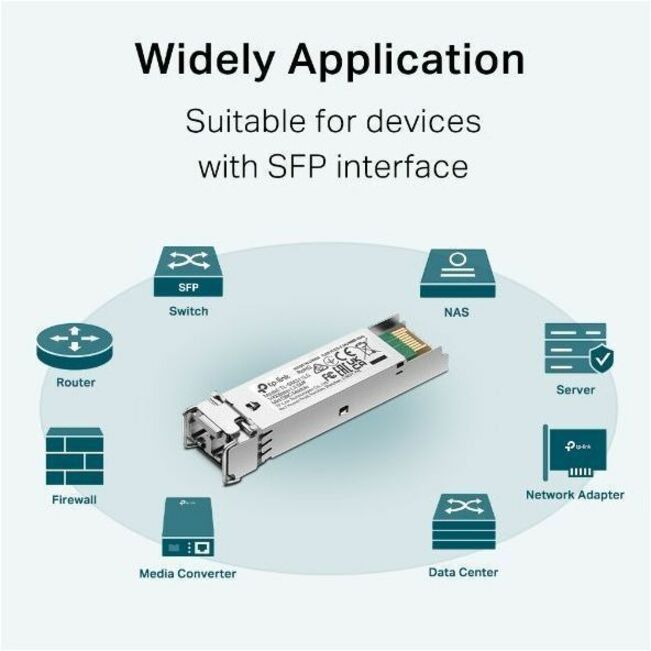

    Up to 20 km transmission distance in 9/125 um SMF (Single-Mode Fiber). Compatible with all SFP ports on TP-Link products including JetStream switches, and media converter MC220L. Work with MC210CS with a single-mode fiber connection. Limited lifetime warranty.

  • Packaged Quantity: 1 Each
  • Product Type: SFP (mini-GBIC)
    • Technical Information
  • Application/Usage:
    • Data Networking
    • Optical Network
  • Features: Digital Diagnostics Monitoring Interface (DDMI)
    • Interfaces/Ports
  • Total Number of Ports: 1

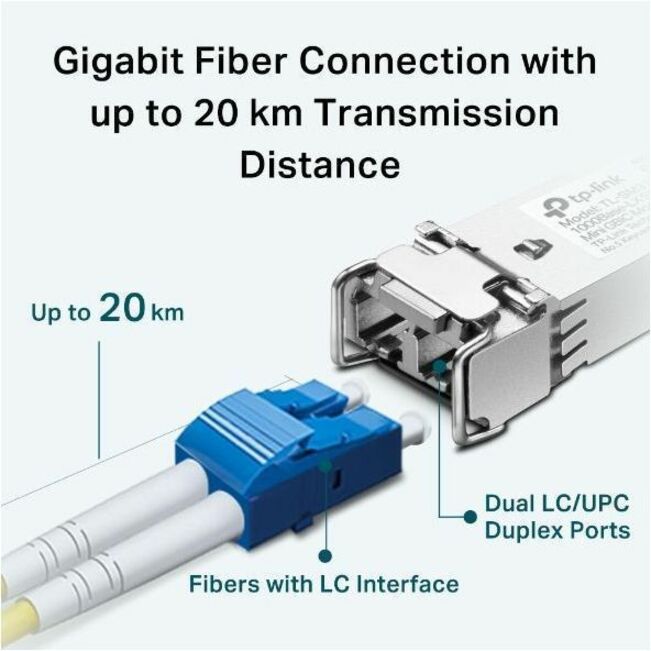

  • Connector Type: LC/UPC
  • Interfaces/Ports Details: 1 x LC/UPC Duplex 1000Base-LX Network
    • Media & Performance
  • Media Type Supported: Optical Fiber
  • Fiber Optic Cable Core/Cladding Specification: 9/125 µm
  • Fiber Mode Supported: Single-mode
  • Ethernet Technology: 1.25 Gigabit Ethernet
  • Network Technology: 1000Base-LX
  • Maximum Distance Supported: 20 km (12.43 Mile)
  • Maximum Data Transfer Rate: 1.25 Gbit/s
    • Environmental Conditions
  • Minimum Operating Temperature: 32°F (0°C)
  • Maximum Operating Temperature: 158°F (70°C)
    • Physical Characteristics
  • Form Factor: Hot-swappable
  • Height: 0.20" (5.08 mm)
  • Width: 0.20" (5.08 mm)
  • Length: 0.20" (5.08 mm)
  • Weight (Approximate): 0.16 oz (4.54 g)
    • Miscellaneous
  • Package Contents:
    • TL-SM311LS MiniGBIC Module
    • Installation Guide
  • Compatibility:
    • MSA Compliant
    • TP-Link MC220L Gigabit Ethernet Media Converter

    TP-Link Switches:

    • T3700 series
    • T2700 series
    • T2600 series
    • T2500 series
    • T1700 series
    • T1600 series
    • T1500 series
    • 2/3/5 series
  • Country of Origin: China
  • Environmental Compliance:
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Restriction of Hazardous Substances (RoHS)
    • Warranty
  • Limited Warranty: Lifetime

    • Materials
