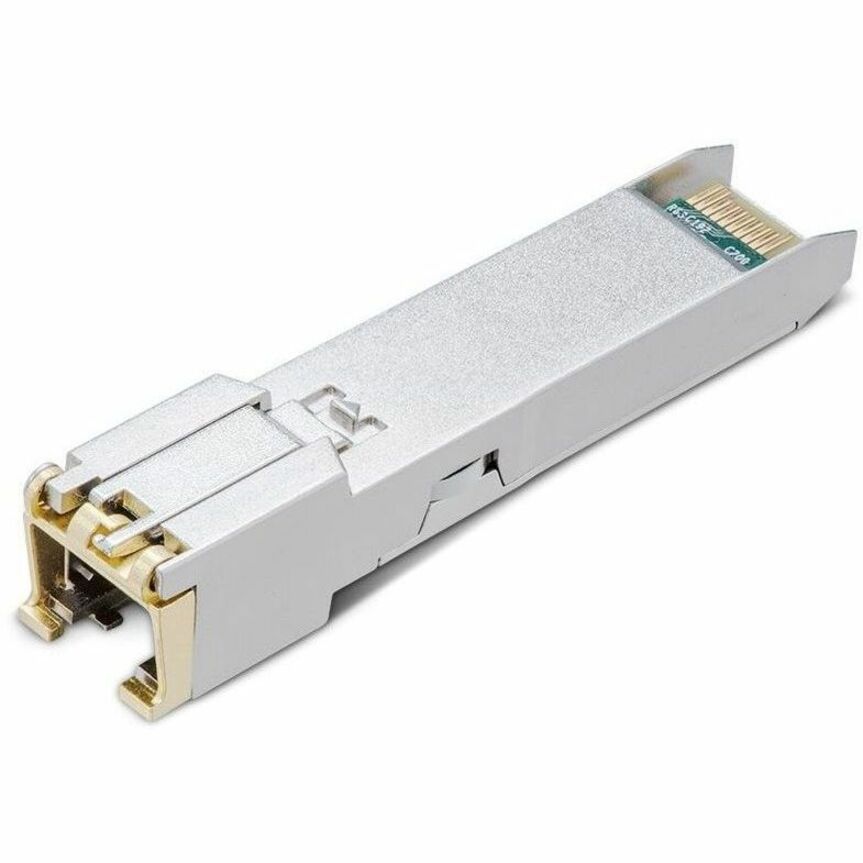

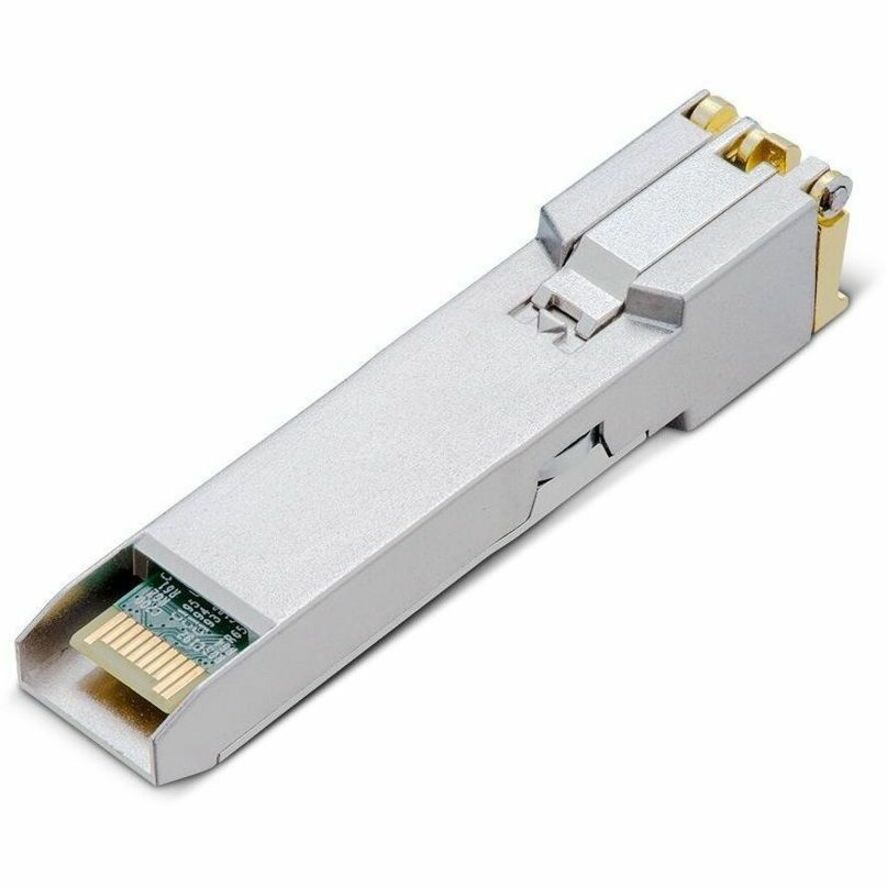

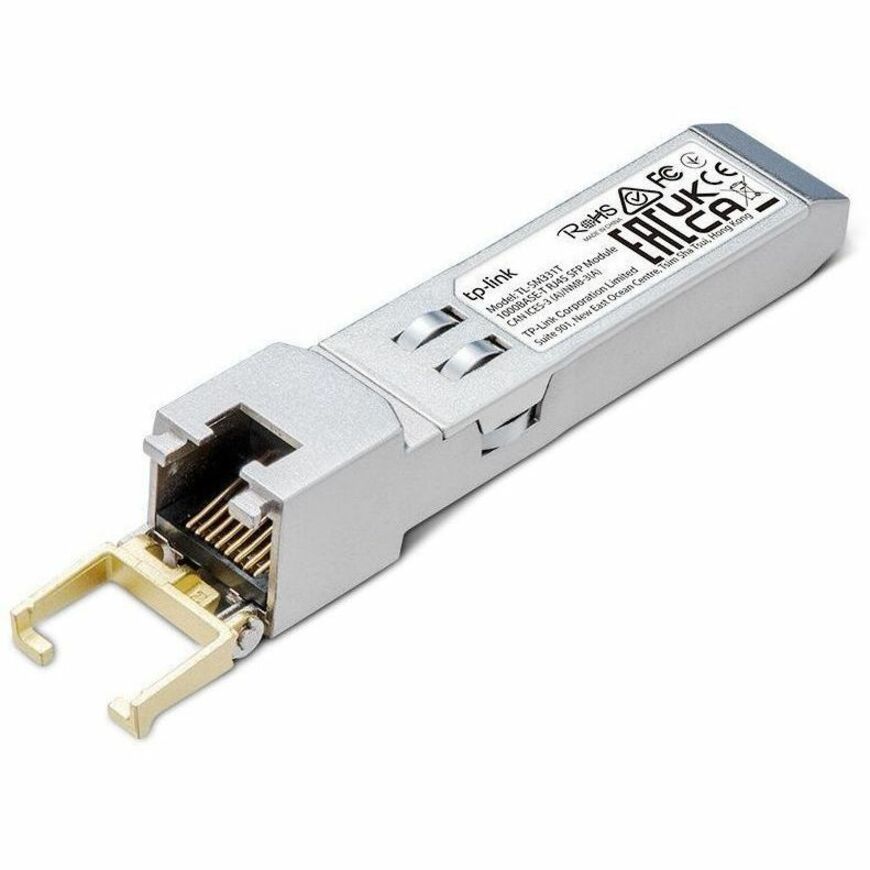

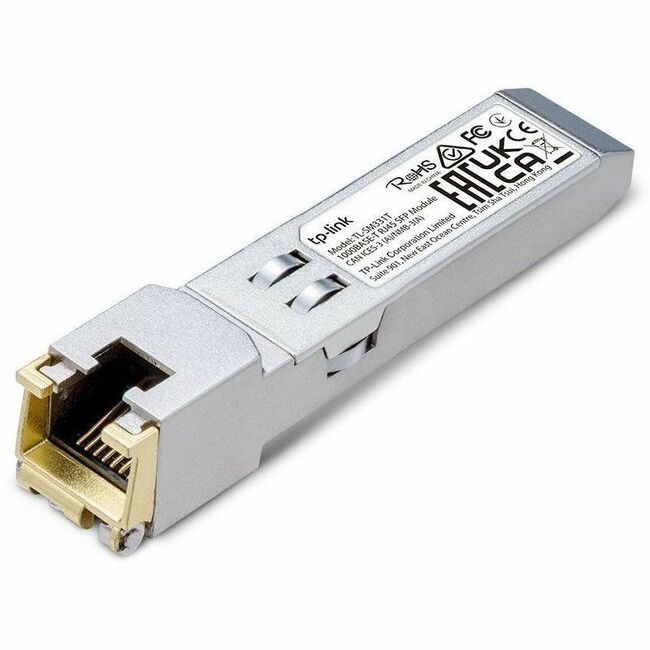

• TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module
1 8

TP-LINK Technologies Co., Ltd

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module - 6862100

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module - 6862100

$46.59 CAD
$46.59 CAD
Sale Sold out
Shipping calculated at checkout.

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module

  • Manufacturer Part No. : 6862100
  • UPC : 840030707742
  • For Data Networking - 1 x RJ-45 1000Base-T LAN - Twisted Pair1.25 Gigabit Ethernet - 1000Base-T - 1.25 Gbit/s - 0.10 km (0.06 Mile) Maximum Distance - Hot-pluggable, Hot-swappable - 1 Each
    • General Information
  • Manufacturer: TP-LINK Technologies Co., Ltd
  • Manufacturer Part Number: 6862100
  • Manufacturer Website Address: http://www.tp-link.com
  • Brand Name: TP-Link
  • Product Model: TL-SM331T
  • Product Name: TL-SM331T 1000BASE-T RJ45 SFP Module
  • Marketing Information:

    Support 1000BASE-T operation in host systems. Support TX disable function. For 100m Reach Over UTP cat 5e or above cable. Hot-pluggable SFP footprint features. Limited lifetime warranty.

  • Packaged Quantity: 1 Each
  • Product Type: SFP (mini-GBIC)
    • Technical Information
  • Application/Usage: Data Networking
    • Interfaces/Ports
  • Total Number of Ports: 1
  • Connector Type: RJ-45
  • Interfaces/Ports Details: 1 x RJ-45 1000Base-T LAN
    • Media & Performance
  • Media Type Supported: Twisted Pair
  • Twisted Pair Cable Standard: Category 5e
  • Ethernet Technology: 1.25 Gigabit Ethernet
  • Network Technology: 1000Base-T
  • Maximum Distance Supported: 0.10 km (0.06 Mile)
  • Maximum Data Transfer Rate: 1.25 Gbit/s
    • Environmental Conditions
  • Minimum Operating Temperature: 32°F (0°C)
  • Maximum Operating Temperature: 158°F (70°C)
    • Physical Characteristics
  • Form Factor:
    • Hot-pluggable
    • Hot-swappable
  • Height: 0.20" (5.08 mm)
  • Width: 0.20" (5.08 mm)
  • Length: 0.20" (5.08 mm)
  • Weight (Approximate): 0.16 oz (4.54 g)
    • Miscellaneous
  • Package Contents:
    • TL-SM331T 1000BASE-T RJ45 SFP Module
    • Installation Guide
  • Country of Origin: China
  • Environmental Compliance:
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Restriction of Hazardous Substances (RoHS)
    • Warranty
  • Limited Warranty: Lifetime

    • Materials
